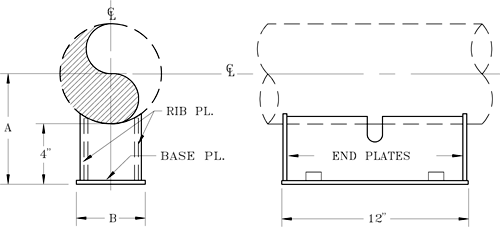

Double T-bar with Cradle Support
A pipe saddle is a structure consisting of a saddle and integral base that is used to support the pipe by transmitting the load or forces to the adjacent structure.
MATERIAL: Carbon steel
FINISH: Painted or hot-dipped galvanized.
OPTIONS: Modifications in the dimensions A, B, C, D, and the slide plate material (PTFE, 25% glass filled or graphite) available upon request.
ORDERING: Specify figure number, pipe size, description, type, quantity, finish and slide plate material.
ALLOWABLE LOADS: The allowable vertical loads depend upon the pipe pressure and wall thickness.
